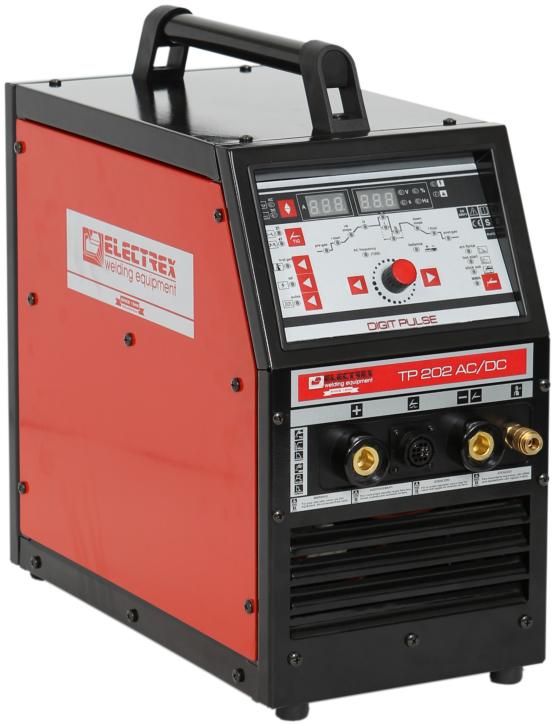

Inverter AC/DC for TIG HF welding and MMA welding.
Enables excellent results either in AC welding mode (for aluminium and light alloys) or DC welding mode (for steel, stainless steel, zinc, brass, copper).
Available TIG Pulsed mode to reduce welding piece distortion and enable thin to thick plate welding.
Balance adjustment for penetration or cleaning effect.
High frequency or contact TIG arc ignition (Liftig).
Also optimized for MMA welding of all types of electrodes.
Standard remote control, pedal, torch with poteciometer and wireless remote control with all welding parameters adjustable (soon available) as option.

- Pulsed current to prevent welding piece distortion
- Presetting and real time welding current on digital display
- Inbuilt overvoltage protection for safe connection to generators
- Overheat, overvoltage and overload protections to ensure maximum reliability
- Up slope welding current time adjustable for a smooth arc ignition
- Down slope welding current time for crater treatment
- Adjustable pre gas time to protect welding pool
- Adjustable post gas time to protect welding seam
- 2 or 4 times working modes selection
- 9 welding programs to store and repeat your welding programs

Tabs

Specification

Technical Properties	TP 202 AC/DC
Input Voltage	1x230 V (+/- 10%)
Frequency	50/60 Hz
Max. primary current MMA/TIG	36/36 A
Max. input power MMA/TIG	8.3/8.3 kVA
Fuse	25 A
No load voltage	70 V
Welding Current Range	10 - 200 A
Duty cycle t=40ºC 10 min (35%)	200 A
Duty cycle t=40ºC 10 min (60%)	150 A
Duty cycle t=40ºC 10 min (100%)	120 A
Electrode	2.00 - 5.00 mm
Protection degree	IP 23S
Insulating class	F
Weight	20 kg
Dimensions	460x240x450 cm
