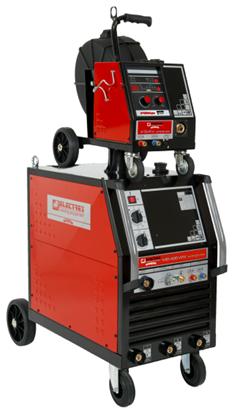

Three phased MIG/MAG welding machine, step controlled, with separated wire feeder.

All primary and secondary parameters visible on a digital display and adjustable by a single button.

Allows welding of all steel types all stainless steel, aluminium and copper alloys and fluxed core wires.

Suitable for medium and heavy metal construction, repair shops and naval shipyards.

Mecapulse

• Innovative system - Low heat continuous welding with less workpiece distortion and excellent gap bridging of thin plates.
Great reduce of wire and energy consumption.

Tabs

Specification

Technical specifications	MIG 406MW 5m Sequence
Input voltage	400 V
Frequency	50/60 Hz
Max prim current	40/23 A
No-load voltage	17 - 42 V
Adjustment	30 - 350 A
Duty cycle at 60%	350 A
Duty cycle at 100%	270 A
Wire diameter	0.8 - 1.6 mm
Adjustment positions	28
Protection class	IP 21
Insulation class	H
Number of rollers	4
Weight	126.5 kg
Dimensions	134 x 41 x 96 cm
