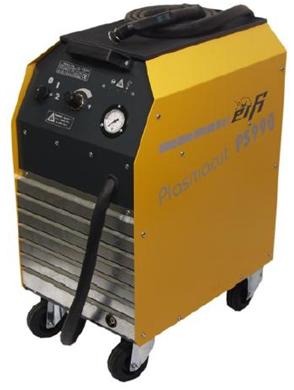

Plasma Cut PS990

PS 990 plasma cutter

Артикул:

1306305

2 600,00 €

Plasma Cut PS990

Plasma cutter up to 25mm!

Very powerful 2-step (60/90A) plasma cutter up to 20/25mm capacity.
Automatic arc strike by HF, also on painted or rusty workpieces. 3 Phase 400V.
Complete with 6m torch, standard air filter and earth lead!

Tabs

Specification

Technical specifications	Plasma Cut PS990
Power supply	400 V
Line fuse (slow)	32 A
Power (60%)	25 kVA
Open circuit voltage	298 V
Duty cycle at 35%	90 A
Duty cycle at 100%	60 A
Current steps	2
Max cutting thickness, quality cut	20 mm
Max cutting thickness	25 mm
Arc strike by HF	yes
Pilot arc function	yes
Arc strike on painted workpiece	yes
Weight	105 kg
Input pressure	6 - 10 bar
Air input	160 l/min
Dimensions (L x W x H)	580 x 370 x 750 mm
