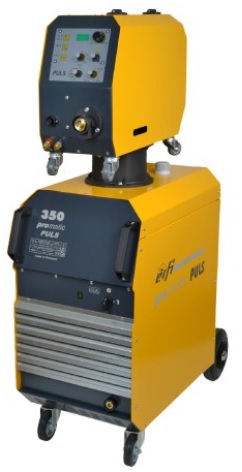

Promatic 350W VK 5m Puls

SKU:

1304478

6 300,00 €

MIG/MAG Pulsing Set - the ERFI Promatic 350W VK 5m PULS - is designed for virtually spatter free welding of inox, mild steel, aluminium and galvanised sheets (MIG-Brazing).

Tabs

Specification

Technical specifications	Promatic 350W VK 5m PULS
Power supply	400 V
Line fuse	25 A
Open circuit voltage	65 V
Welding current	15 - 350 A
Voltage steps	stepless
Duty cycle (25/40 °C) at 50%	350/320 A
Duty cycle (25/40 °C) at 100%	280/250 A
Number of rollers	4
Wire diameter	0.8 - 1.2 mm
Dimensions of powersource (L x W x H)	980 x 470 x 900 mm
Net weight	130 kg
