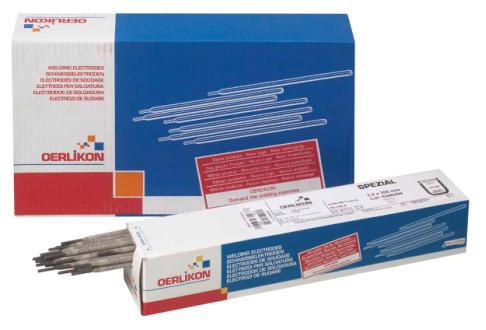

Oerlikon Spezial is a basic coated multi-purpose electrode suitable for structural steelwork, workshop and maintenance welding. Smooth and clean welds, blending into the base metal without undercut. Excellent gap bridging properties. The double coating of this electrode produces a stable, concentrated and directed arc, thus being ideally suited for root pass and positional welding. Welds are of X-ray quality.

Tabs

Спецификация

Classification
AWS A5.1:	E7016-H8
EN 499: E	38 2 B 12 H 10
EN ISO 2560-A:	E 38 2 B 12 H10

Analysis of all-weld metal (Typical values in %)

C	Mn	Si	P	S	Cr	Ni	Mo	Nb	V	N	Cu
0.06	0.90	0.70	<0.025	<0.015	-	-	-	-	-	-	-

All-weld metal Mechanical Properties

Heat Treatment	Yield Strength N/mm2	Tensile trength N/mm2	Elongation A5 (%)	Impact Energy ISO - V (J) - 20 °C	Hardness
As Welded	> 380	470-600	> 25	> 80

Materials

S(P)235-S(P)355; GP240-GP280; L245-L360

Storage and redrying

Keep dry and avoid condensation.
HD < 10: Re-dry at 300-350 °C for 2 hours, 5 times max
